Product Description

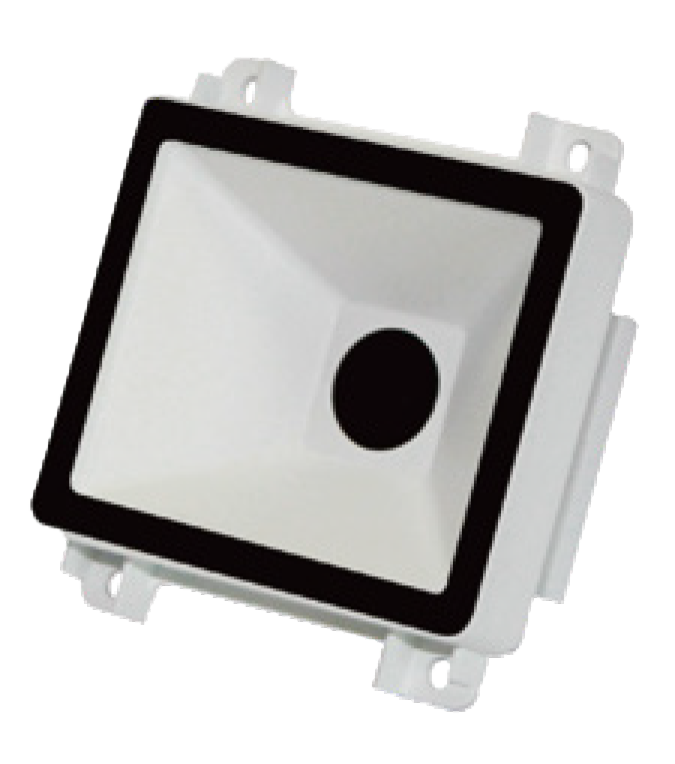

The Logic Controls 2D Built-In Kiosk Scanner is a compact, high-performance scan module designed for fast and accurate barcode capture in kiosks, POS systems, ticketing terminals, and embedded retail environments.
Its large scan window, high-speed CMOS engine, and advanced decoding technology enable quick reads of both 1D and 2D barcodes—even on bright or dim mobile screens. With low-power operation, reliable motion tolerance, and seamless integration options, this scanner delivers dependable performance for modern payment, identity, and self-service applications.
Performance & Scanning
-
Large scan window for easy, efficient barcode targeting
-
High-speed 640×480 CMOS sensor with 30 fps capture
-
Strong decoding for 1D and 2D barcodes, including QR, PDF417, and DataMatrix
-
Optimized for mobile screen scanning with built-in light supplementation
-
Fast reading of paper codes, smartphone codes, and on-screen digital payments
-
Wide angle scanning: 360° rotation, 65° dip, 60° elevation, 70° horizontal field of view
-
Reads EAN-13 from 20 mm to 130 mm at 13MIL PCS90%
Technology & Efficiency
-
32-bit MIPS @ 1 GHz processor for rapid decoding
-
Low-power autonomous technology for energy efficiency
-
Operates on 5 VDC with only 108 mA typical current draw
Durability & Environmental
-
Operating temperature range: –20°C to 60°C
-
Storage temperature range: –40°C to 70°C
-
Works in 5%–95% non-condensing humidity
-
Daylight-ready with performance up to 100,000 Lux
Integration & Compatibility
-
Supports USB and RS232 interfaces
-
Compact ABS+PC housing for easy kiosk or device integration
-
Secondary development support for diverse embedded applications
